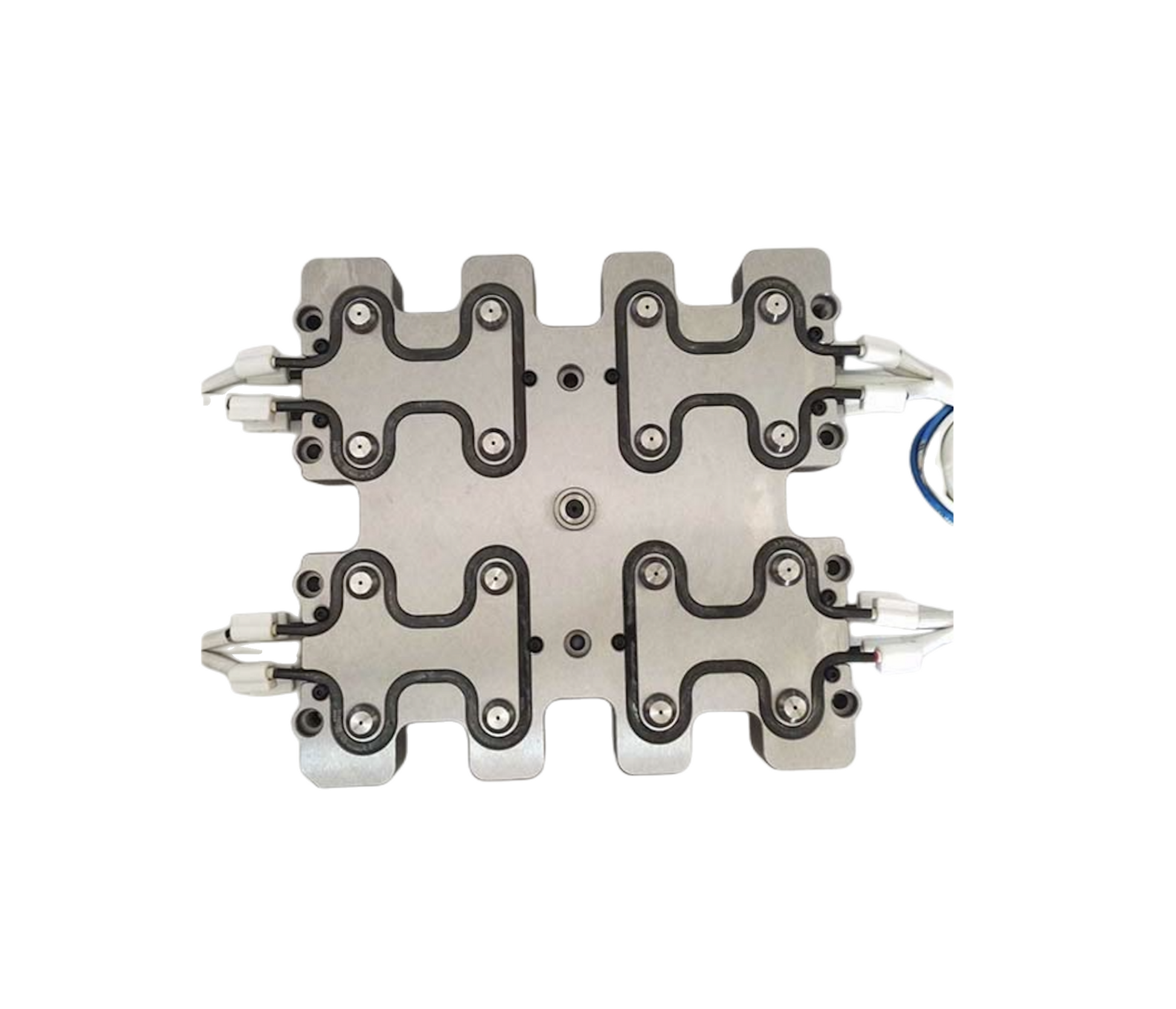

Tubular Heaters for Hot Runner Manifolds

1. GeneralSpecifications

Applicable Industries:Hot runner，PET hot runner,Injection Machine,plastic machine，,Hot Runner Manifolds



Min. order 100 pieces

LT: 10-20 DAYS

Test Report:Provided

Weight: 0.2 KG

Warranty period：18 months









Item name	Tubular Heaters for Hot Runner Manifolds
Voltage	AC110V~230V
Power	100W-3000W
Diameter	6.5mm 6.6mm
Length	280-1500mm
Resistance heating wire	Ni-Cr
Sheath	stainless steel 321/304
Insulation	High-purity Mgo
Maximum temperature	700 degree Celsius
Die Electrical Strength	1500V A/C
Insulation	> 5 M W
Wattage Tolerance	+5%, -10%





2. Features

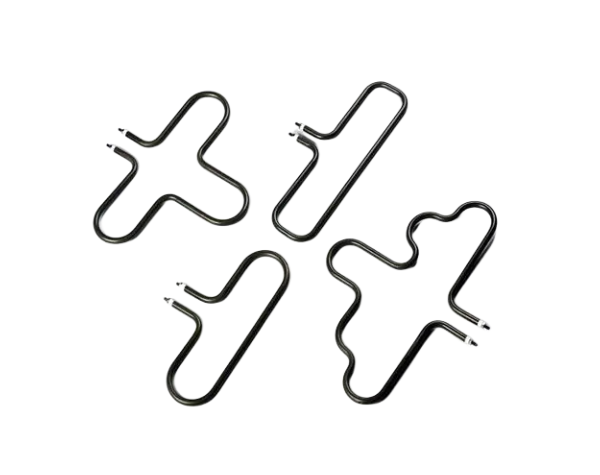

• Bend and form according to CAD drawings provided by customers
• The heating is uniform and the temperature rise curve is stable
• The heatersare soft and do not easily cause rebound
• The defect rate is less than 1‰
• Comply with:Synventive,Yudo,HRS,Mould-tip,Mobest

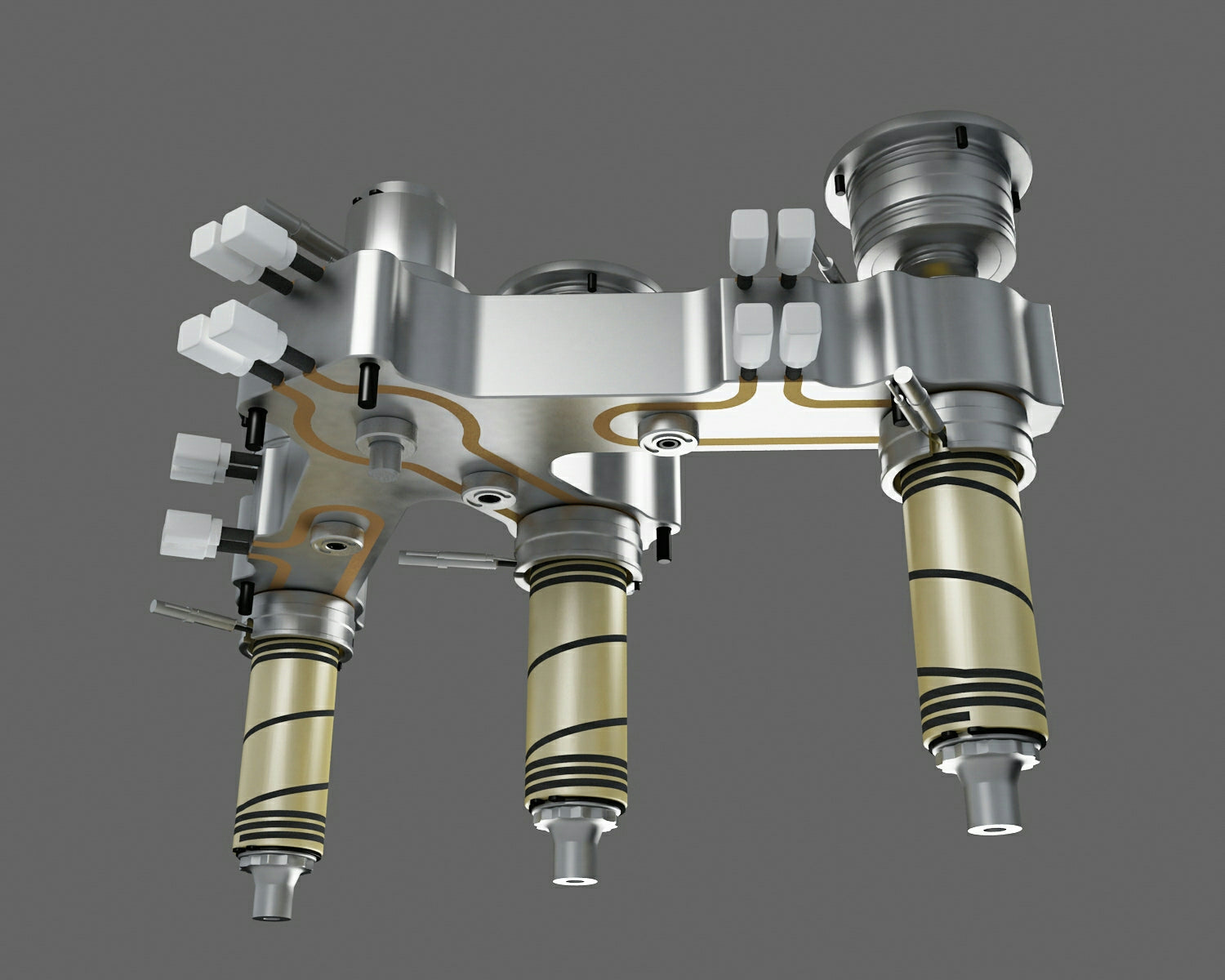

APPLICATIONS
