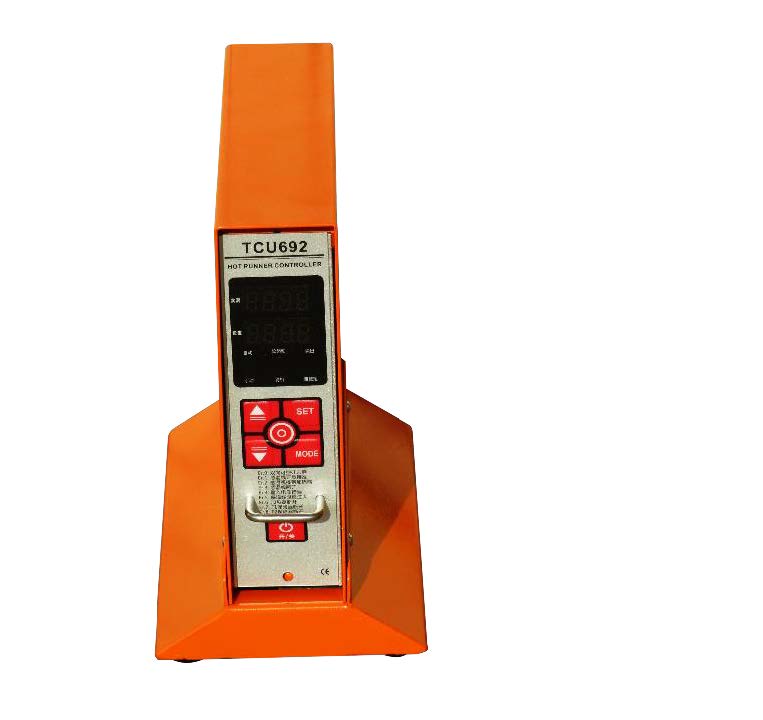

Single Zone Hot Runner Temperature Controller For Injection Molding

1. General Specifications



item	Specifications
SKU:	HTB682001
Model Number	TC-TCU692-1P
Power Supply	AC 180～250V 50/60Hz

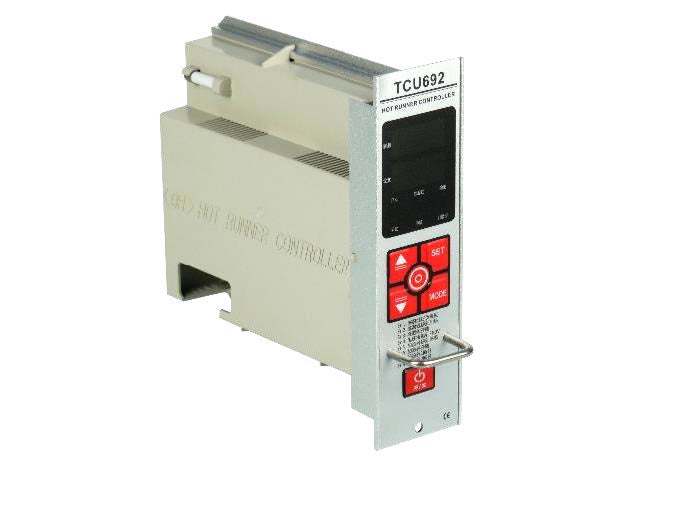

Control Module:	TCU692
Zone:	Single
Sensor type:	Thermocouple J or K
Temperature setting:	30℃～999℃
Load Capacity:	25W～3300W
Control Accuracy:	±0.2% FS

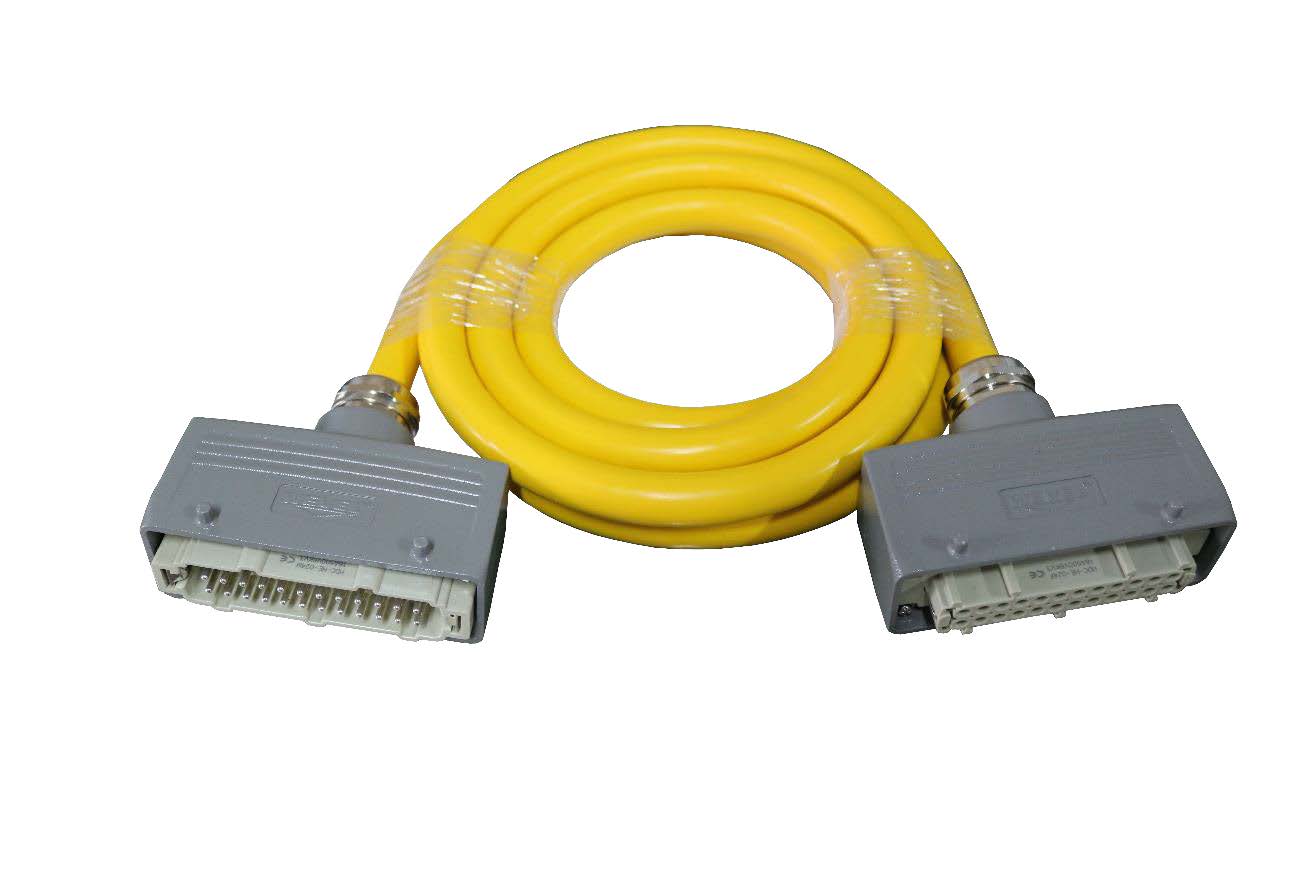

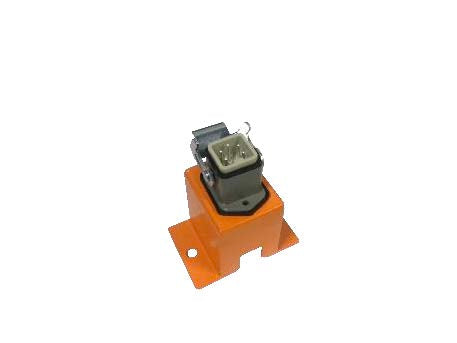

Connector Type:	5 Pins or Customized
Control method:	Auto-PID / Manual
Output Type:	PWM
Operation condition:	-10℃~+55℃;10%RH~85%RH





2. Features

Light Handy and Easy to use.

3 operating modes

• Normal mode
• Parameter mode
  • Alarm mode

3 control modes

• Normal (Auto PID) mode
  • Standby mode
• Manual mode
  Soft start (dehumidify) function
  This function could heat slowly to make dehumidify action when turn on the power.
  PID self-adjusting function
  The controller will start to learn the system after power up, once finishes, it returns to a standard PID control.

Alarm when the followings occurred.

1. Ultra-high or ultra-low Temperature
   2. Thermocouple break, short or inverse
   3. Thermocouple is out of its position
   4. Heater break, short or overload
   5. Output device is damaged.
2. Over voltage of power supply

Protection activated in the following situations:

1. Over voltage self-protected, max.AC380V
2. Thermocouple input protection, prevent module damaged by misconnection
3. Thermocouple & heater inverse protection, prevent thermocouple damaged by misconnection
4. Soft-start mode, avoid the moisture make the heater burn out

5.Heater dehumidified time can be extended
