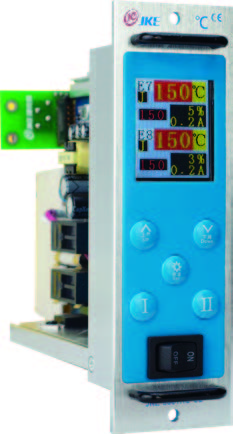

Hot Runner Temperature Control Card For Hot Runner Temperature Controller

1. General Specifications



item	Specifications
SKU：	HTC681003
Model Number	JKE-6001XC-C
Zone:	Dual Zone
Process Display:	LCD
Power Switch:	Toggle switch
Power:	AC 85～245V 50/60Hz
Load Capacity:	3000W（240V）/13A
Consumed Power：	< 5W
Temperature setting:	45℃～450℃
Temperature Measuring Accuracy：	0.1℃
Temperature Control Accuracy：	±0.5℃
T/C cooling compensation:	Dynamic tracking
Output type:	PWM/SSR
Control method:	Auto-PID / Manual
Sensor type:	Thermocouple J or K or E
Operation condition:	0℃~+55℃;10%RH~90%RH
Communication:	Yes
Comply with DME/Athena/YUDO	Yes



2. Features

1)   With FUZZY PIDD control technology and having not set PID parameters, it can automatically adjust to any heating models and greatly improve the work efficiency (The function can be closed by senior operate menu).

 2)   T/C and Heater revise protection.

 3)   Auto compensation for ambient temp, Helps controller value more precisely.

 4)   T/C cold junction compensation, to avoid the relative error by the change of ambient temp

 5)    Sensor detects monitor

 6)    Controller can detect the T/C Revise and T/C open, when detected the problems, Control will operate according to the errors and control mode;

 7)    Testing loop detective.

 8)    Heater current detective (Can set max output current).

 9)   Supply power frequency detective

10)   Card temp inside detective (can set Max temp inside card)

11)   Output break detective.

12)   Electric leakage detective.

13)   Tries short monitor.

14)   Heater open monitor.

15)   AL-L/AL-H alarm.

16)   Manual output mode.

17)   Non-touch transfer.

18)   Supply power frequency online tracking, When the frequency is not stable, it will auto shift to PWM output.

19)   Trouble shoot indicator, helps user find error easier

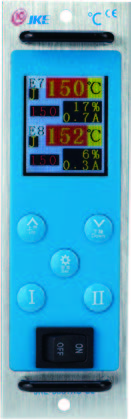

PANEL INTRODUCTION



APPLICABLE CONTROLLER

• 1~256 zones mainframe is provided.
• Low cost, saving space.
• Customized connector type, mold-power & thermocouple wiring mode, power supply wiring mode



APPLICATIONS

• Hot runner temperature controller is a crucial part in the hot runner system.
• Widely used in electronics, automobiles, medical, commodities, toys, packaging, architecture, office equipmentand other industrial sectors
