Hot Runner Injection Time Sequence Controller For Plastic Parts Needle Valve Hot Runner System

1. General Specifications



item	Specifications
SKU：	VGS683001
Model Number	TCA 8P
Zone:	1～8
Input Power:	AC 220V 50/60Hz
Load Capacity:	AC220V output: 1A/zone DC24V output: 50W or 240W Relay contact: 3A/zone
Input injection signal	AC220V / DC 24V
Solenoid valve voltage	AC220V / DC 24V
Operating mode	Mode-A / Mode-B
Time accuracy	0.01~99.9S
Control method:	Auto / Manual
Power switch:	Electronic switch
Operation condition:	-10℃~+55℃;10%RH~85%RH

2. Features

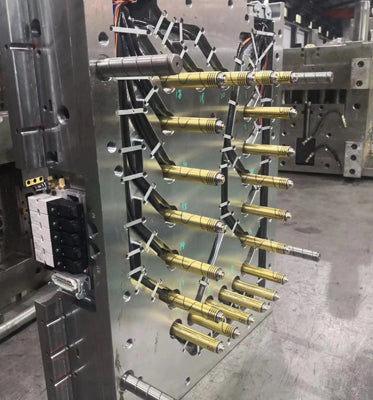

The sequence time controller is used to control the injection timing of the hot nozzle of the mold when the valve needle hot runner system is used. The sequence time controller can control each gate of the hot runner system and has the following advantages:

1. Eliminate the weld marks that cause defects on the surface of the formed product or reset the position of the weld marks on the surface of the product, to improve the quality of the formed product.
2. Through the adjustment of the injection volume of each gate, the quality can be improved to prevent the occurrence of product defects or product filling failures.
3. Under the control of the time controller, all the gates are not opened at the same time, so the injection can be carried out with the minimum clamping force.
4. Through the improvement of the injection rate at the gate, the product flow mark can reach the best condition.

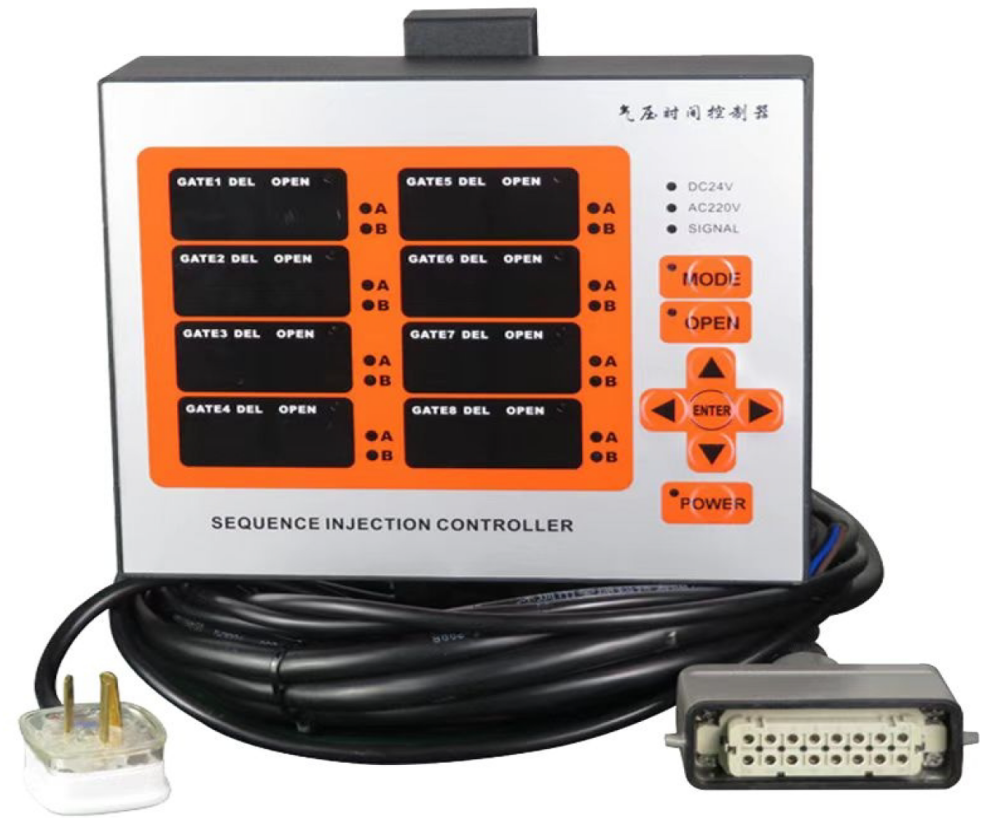

PANEL INTRODUCTION

1: Gate indicator 2: Delay time 3: Injection time 4: Injecting indicator 5: Output DC24V indicator 6：Output AC220V indicator 7:Injection signal indicator 8: MODE key 9: OPEN key (Manual) 10: Up Key 11: Left key 12: Right key 13: Down key 14: ENTER key 15: POWER key 16: Working Mode indicator

OPERATING MODE





MODE-A

The controller keeps the gate output open until the injection signal is off.



MODE-B

At the end of the open time, the gate output will close and won't function until the next injection signal.



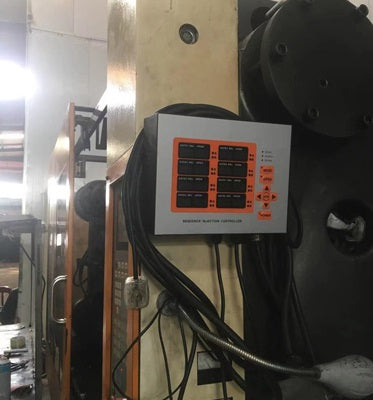

APPLICATIONS



Hot runner Injection Sequence Controller is a crucial part in the hot runner system. It is used for the control of nozzles or hot tips, cooperating with hot runner system. Widely used in electronics, automobiles, medical, commodities, toys, packaging, architecture, office equipment and other industrial sectors.
