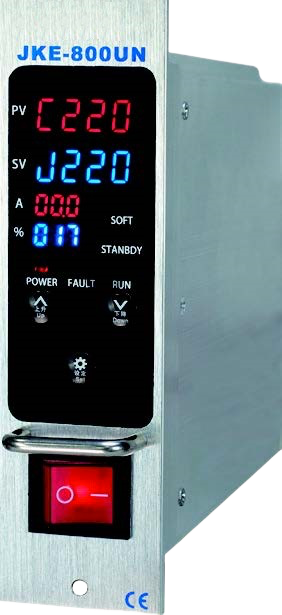

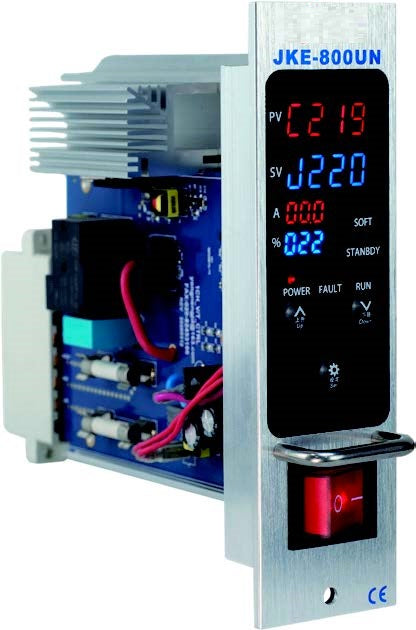

Single Zone Temperature Control Module For Hot Runner Temperature Controller
Single Zone Temperature Control Module For Hot Runner Temperature Controller
Regular price
$204.00 USD
Regular price
Sale price
$204.00 USD
Unit price
per
- General Specifications
|
item |
Specifications |
|
SKU： |
HTC681009 |
|
Model Number |
JKE-800UN |
|
Zone: |
Single Zone |
|
Process Display: |
LED |
|
Power Switch: |
Toggle switch |
|
Power: |
AC 85～260V 50/60Hz |
|
Load Capacity: |
100W～3600W（240V） |
|
Consumed Power： |
< 5W |
|
Temperature setting: |
45℃～450℃ |
|
Temperature Measuring Accuracy： |
0.1℃ |
|
Temperature Control Accuracy： |
±0.5℃ |
|
T/C cooling compensation: |
Dynamic tracking |
|
Output type: |
PAC/SCR |
|
Control method: |
Auto-PID / Manual |
|
Sensor type: |
Thermocouple J or K or E |
|
Operation condition: |
0℃~+55℃;10%RH~85%RH |
|
Communication: |
Yes |
|
Comply with DME/Athena/YUDO |
Yes |
- Features
- Four rows of LEDdisplay, clear interface with comprehensive content.
- Displays real-time output power percentage and current.
- Standard temperature control box size and interface, Compatible with DME, YUDO,Athena,
- High sampling speed, high measurement resolution, Unique temperature control accuracy up to±5 ℃.
- Fuzzy PID control, automatic, manual, and standby can be freely switched.
- Supports multiple types of thermocouples.
- Multiple self-diagnosis and protection functions provide comprehensive protection for heating systems and molds.
- Alarm for overvoltage of the working power supply and cut off the output.
- It has more than ten protection mechanisms, including sensor and heater misconnection protection, load short circuit protection, fuse blowing prompt, and thyristor breakdown prompt.
PANEL INTRODUCTION
- 1~256 zones mainframe is provided.
- Low cost, saving space.
- Customized connector type, mold-power & thermocouple wiring mode, power supply wiring mode
APPLICATIONS
- Hot runner temperature controller is a crucial part in the hot runner system.
- Widely used in electronics, automobiles, medical, commodities, toys, packaging, architecture, office equipmentand other industrial sectors.
