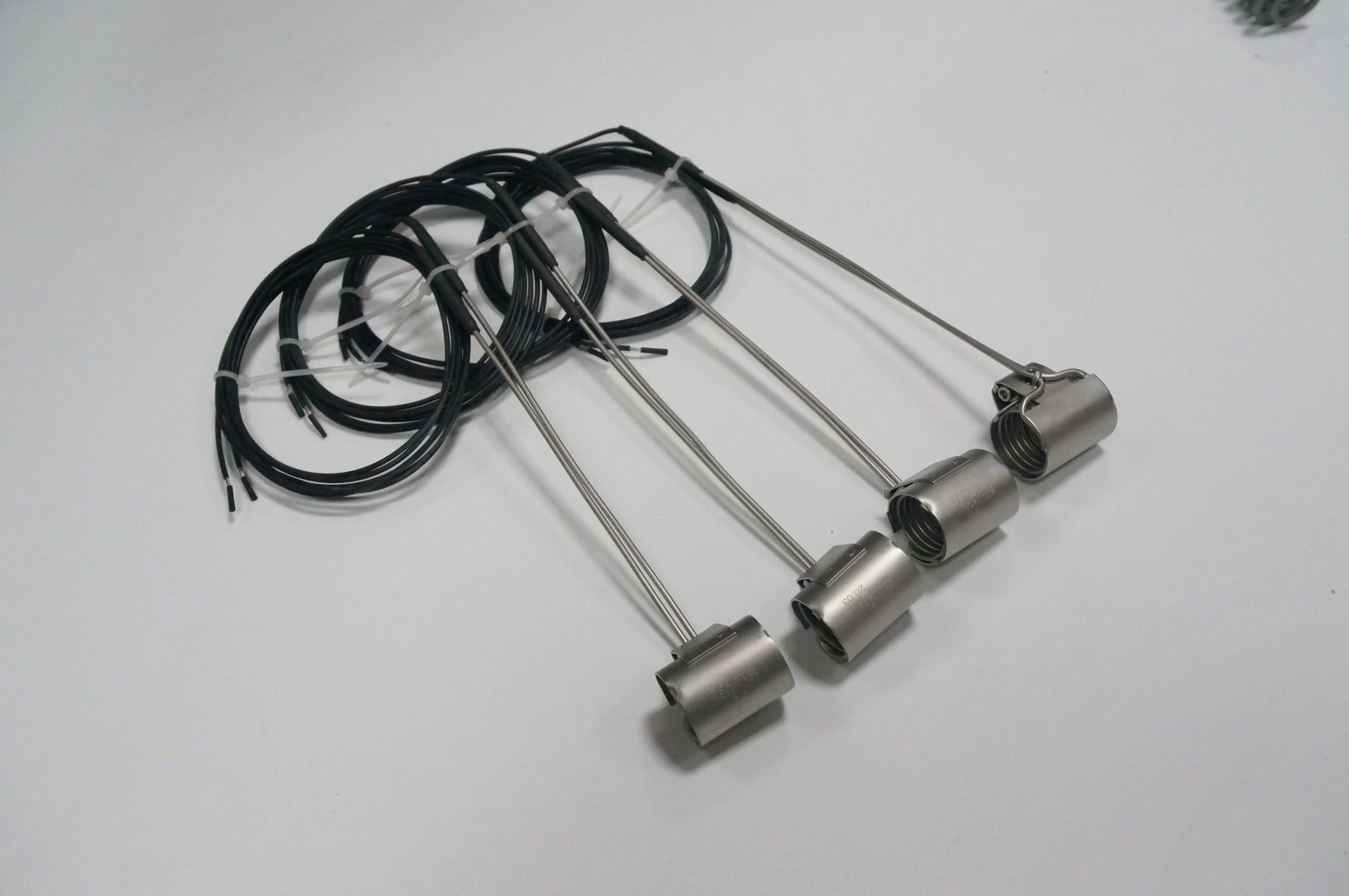

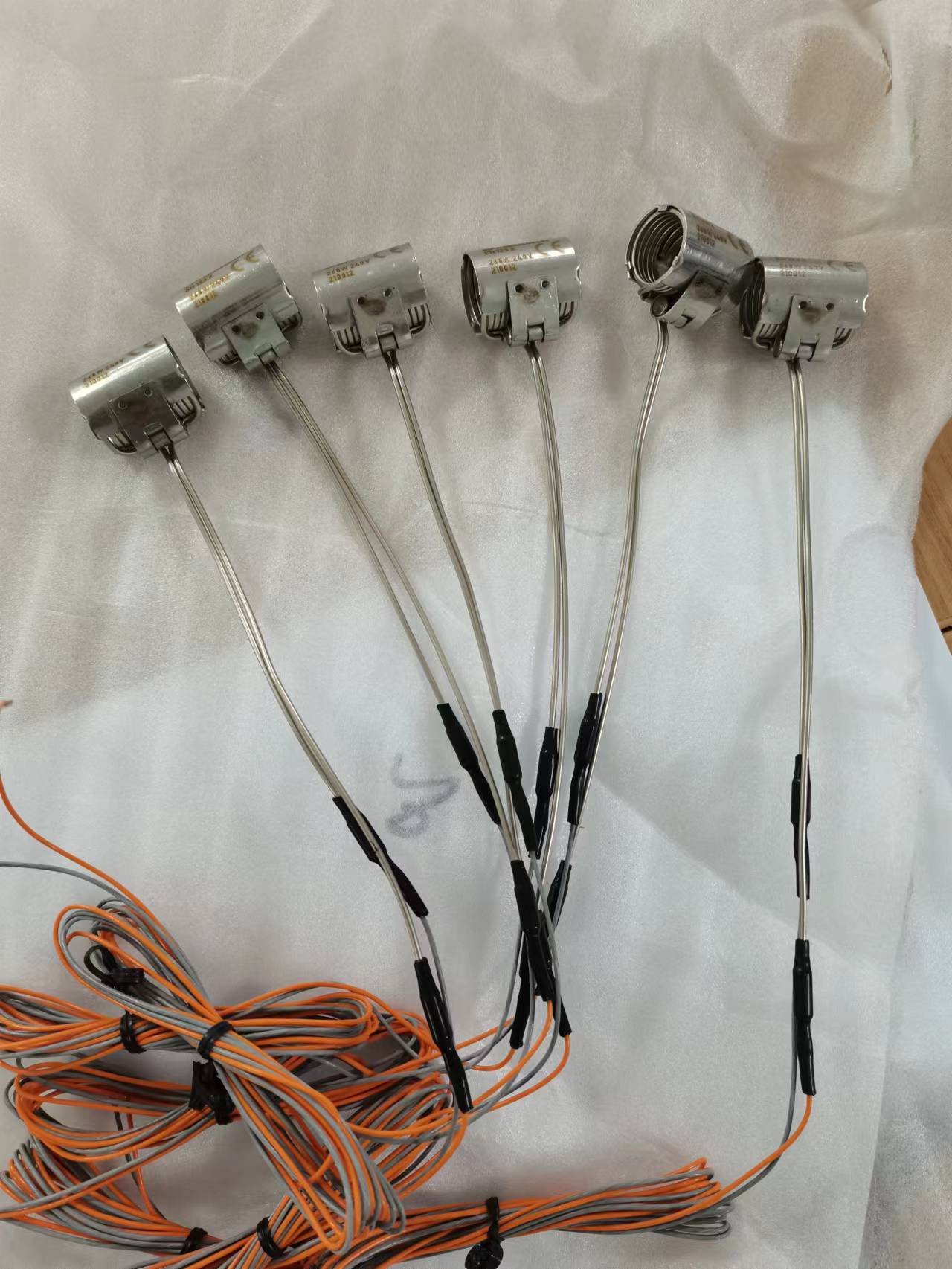

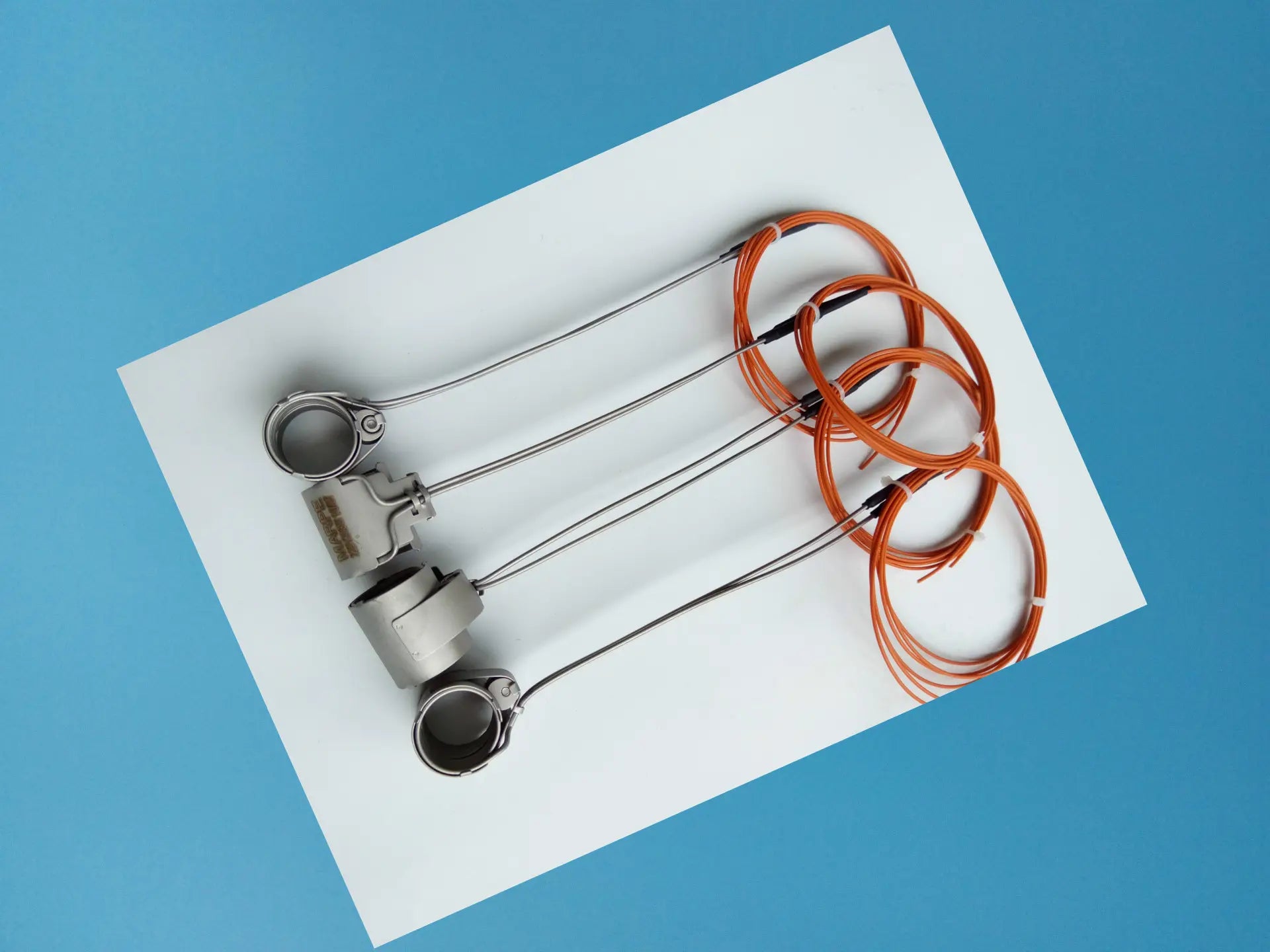

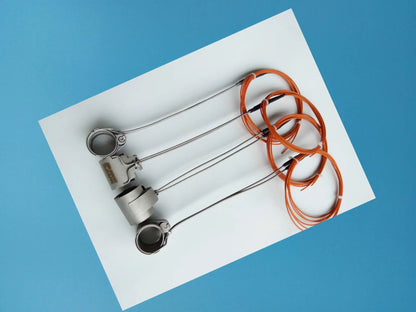

Coil heater for PET hot runner

1. GeneralSpecifications

Applicable Industries:Hot runner，plastic machine，PET hot runner

LT: 10-20 DAYS

Machinery Test Report:Provided

Weight: 0.2 KG

Warranty period：18 months





Item name	coil heater for PET hot runner
Voltage and power	240V 268W
Resistance heating wire	Ni-Cr
Sheath	stainless steel 304
Insulation	High-purity Mgo
Maximum temperature	700 degree Celsius
Die Electrical Strength	800V A/C
Insulation	> 5 M W
Wattage Tolerance	+2%, -2%
Size	19.05X24X30.7mm
Wire length	2000mm



2. Features

Key Selling Points:High-accuracy,High-quality

Comply with：HUAYAN,UNIQUE,SIPA,GUOZHU,GDXL





APPLICATIONS







• Coilheater is a crucial part in the hot runner system.

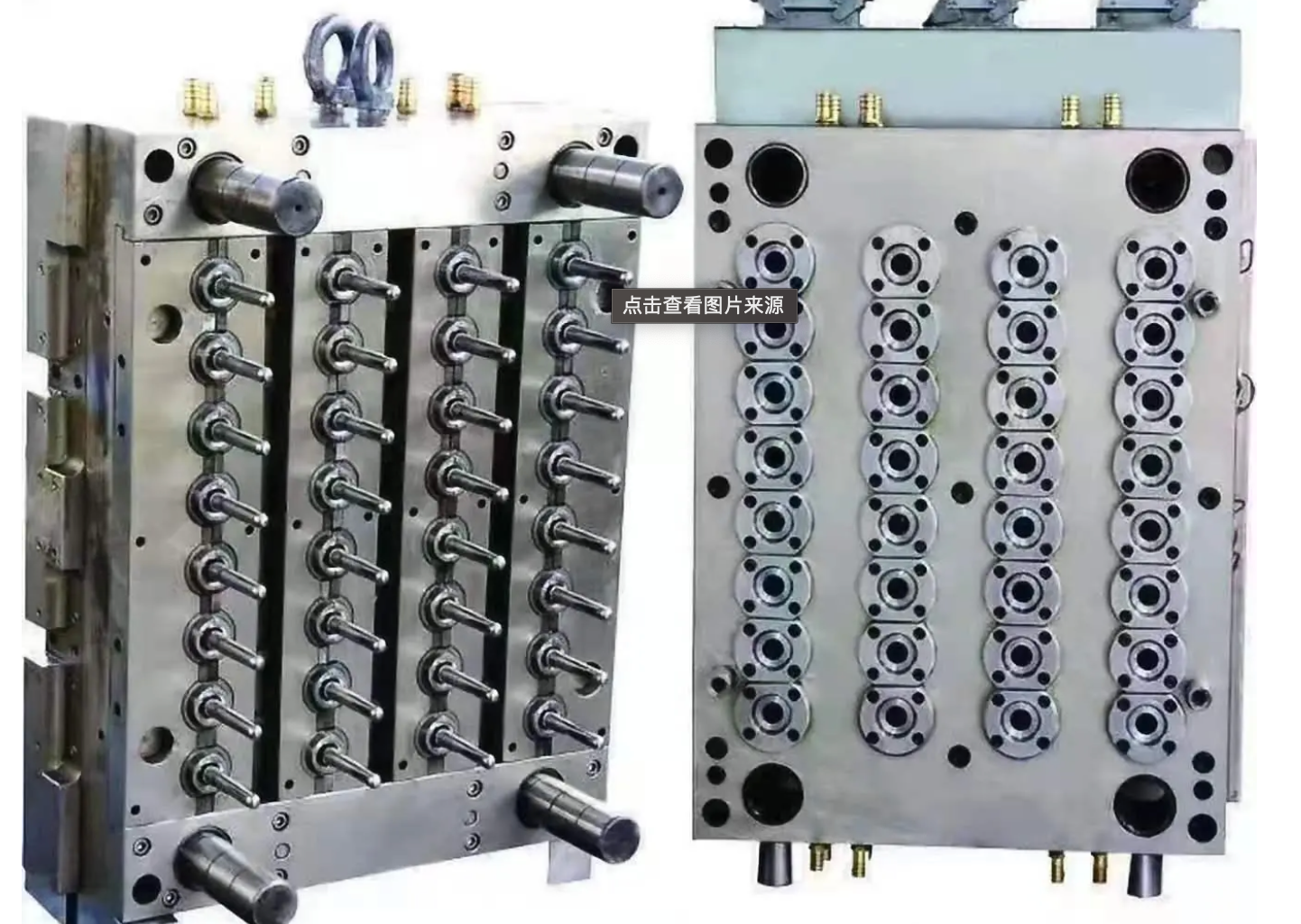

• Widely used in PET mould,hotrunner and other industrial sectors.
